Red Power Hydraulic Cylinders

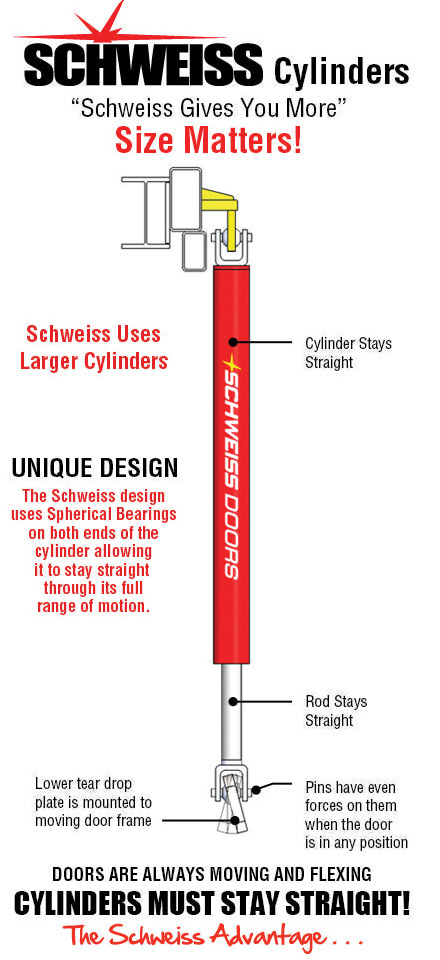

A large red power cylinder with shpherical bearings

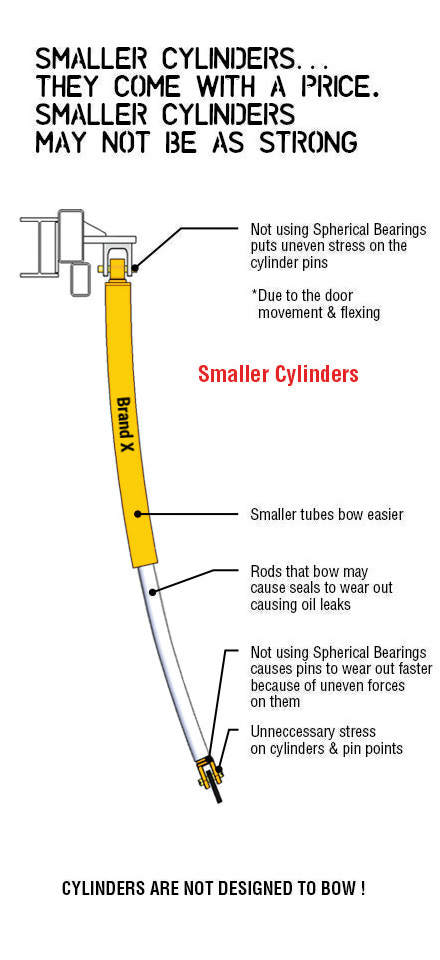

A small brand-x cylinder bending under the strain of the door

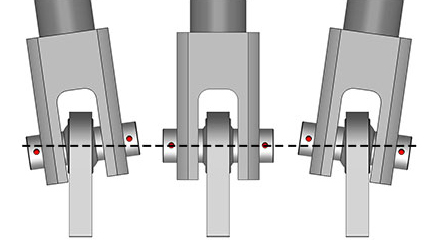

Spherical Bearings

Allows for
Flexing
Stays
Straight
Allows for
Flexing
Spherical bearings for red power pumps

AN IMPORTANT PART OF THE DOOR! We'll tell you why...

Hydraulic doors are large in size and just like an airplane wing, the door frame must be able to flex during operation. The hydraulic cylinders on each side of the doorway are connected to the door frame and the building using spherical bearings.

The spherical bearings accommodate the flexibility of the door frame while at the same time allowing the cylinders to raise and lower the door without binding on the hydraulic cylinder pins and brackets.
